GPU Passthrough Guide

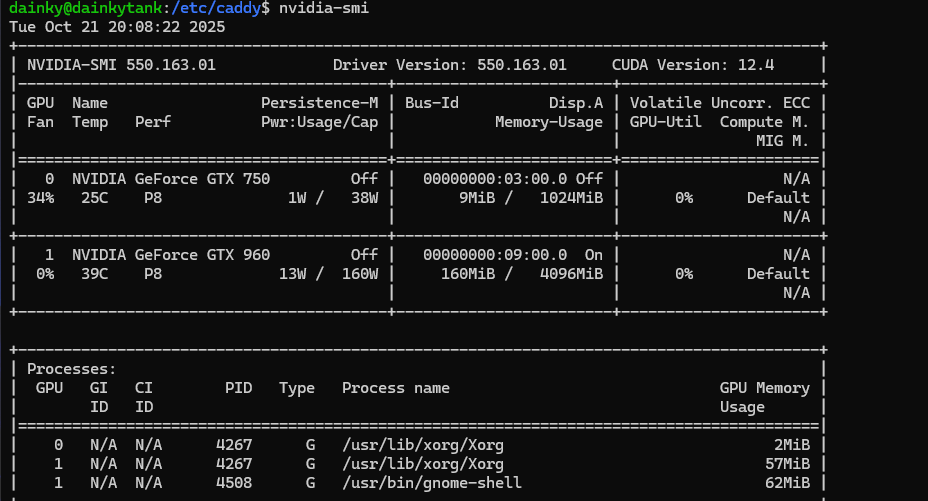

First lets confirm we have both GPUs properly being picked up by the host

Next, we need to check if IOMMU is enabled on the host. This is crucial for GPU passthrough to work. We are ready to go.

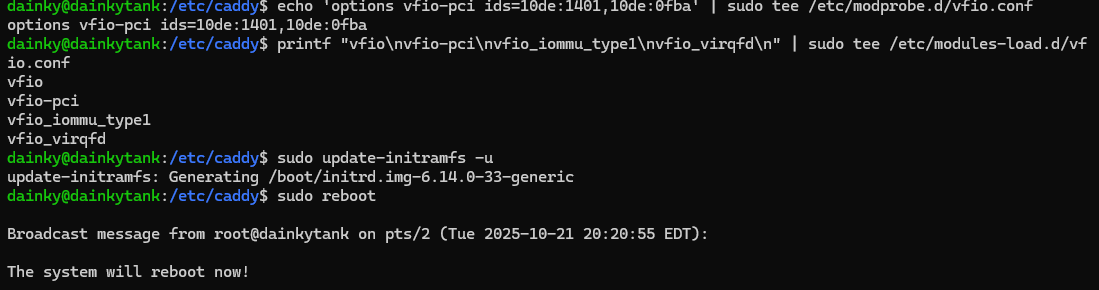

Now we need to set up VFIO to allow the VM to access the GPU. This involves configuring the host to unbind the GPU from the host drivers and bind it to the VFIO driver.

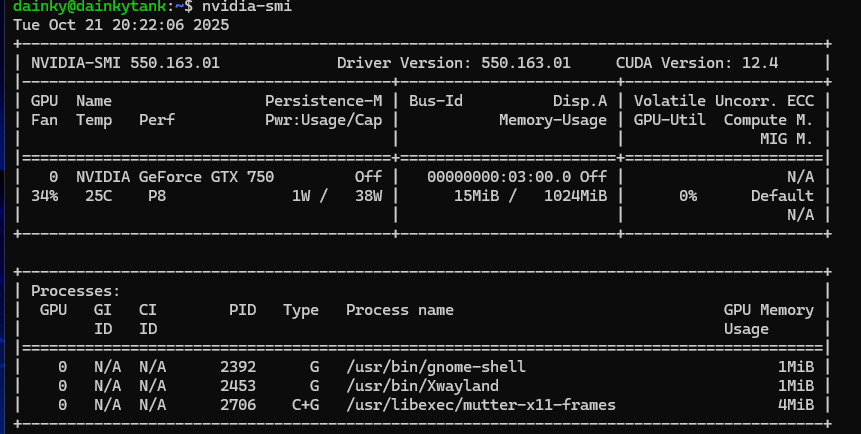

After the reboot, we run nvidia-smi again to check which gpus are dedicated to the host still. This confirms our 960 has been detatched from the host and is ready to be passed through to the VM.

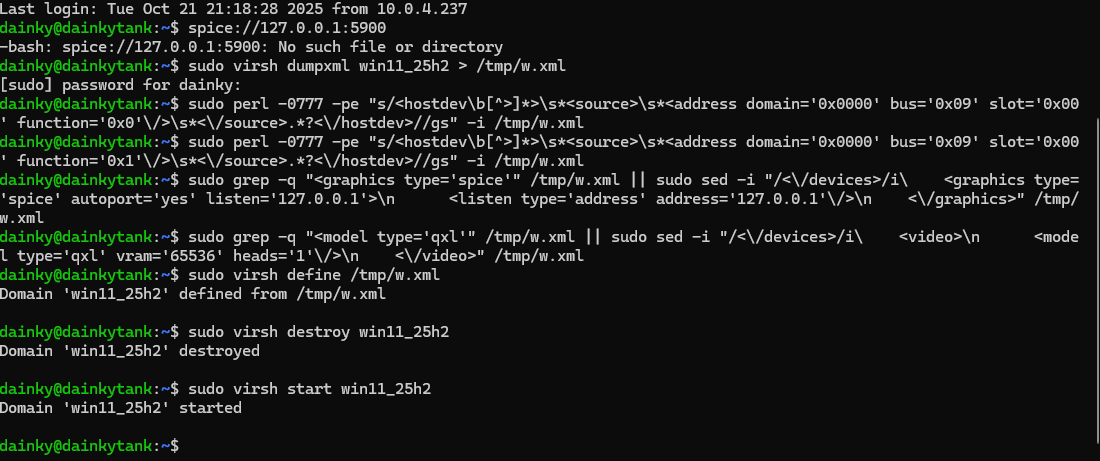

With the GPU unbound from the host, we can now configure the VM to use it. This involves editing the VM's XML configuration to include the GPU as a passthrough device. We will use Spice and QXL for the display until the GPU drivers are installed in the VM

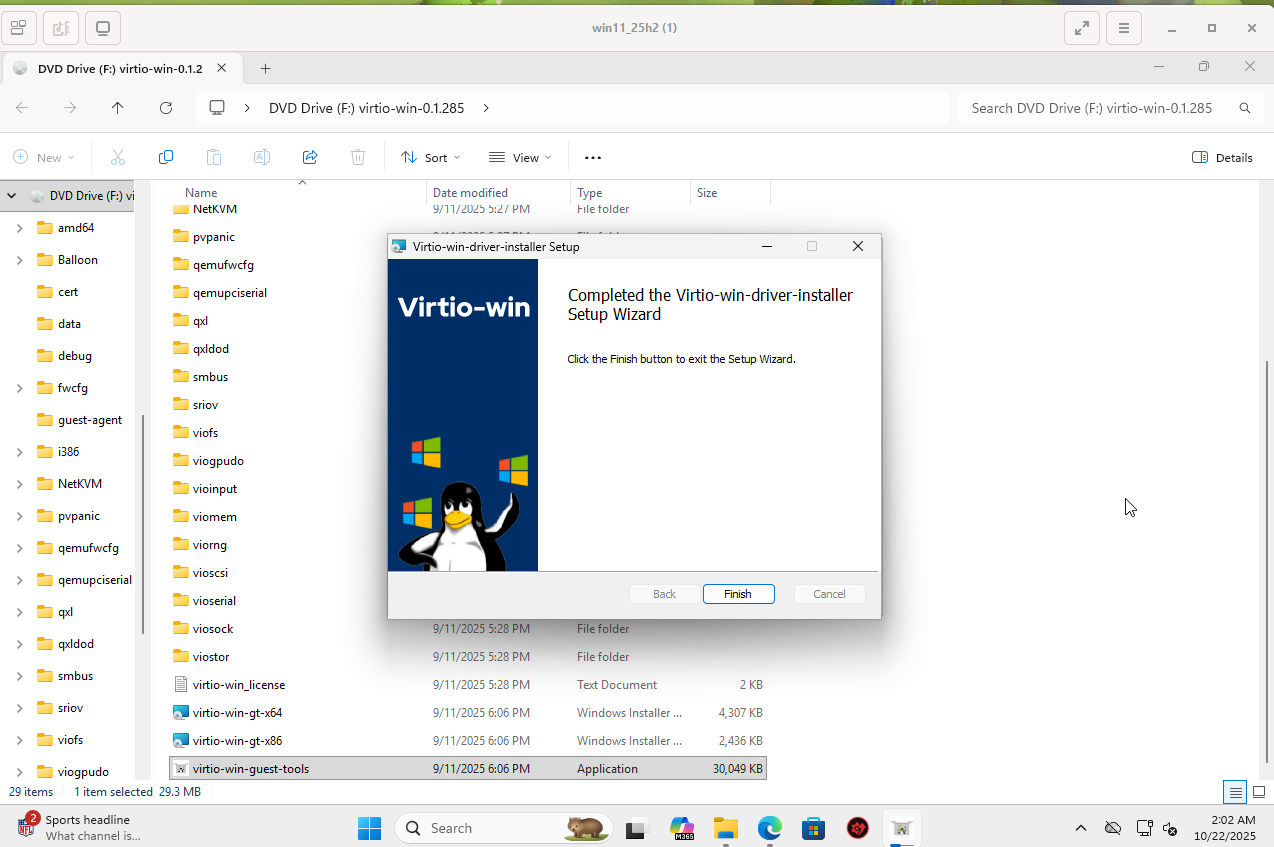

We installed Virtio drivers inside the VM to help disk/network/vm performance. After the installed the performance was instantly and noticeably increased

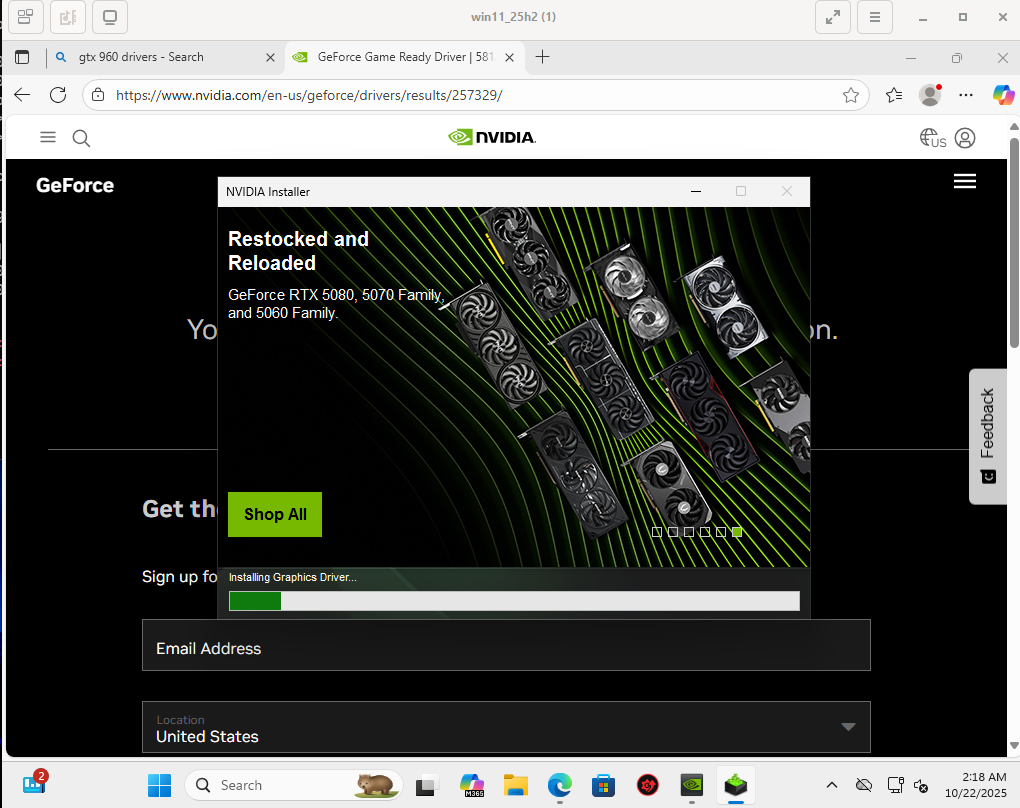

We installed the NVIDIA drivers for the 960 inside the VM. This allows the VM to utilize the GPU for rendering and other tasks. After this, I expected the be able to pass through the GPU easily, but there was alot of difficulty with the configuration. For example, while the VM saw the GPU, it was barely able to use it because QXL/Spice forcing OpenGL 1.0 and no higher.

This part took quite a while to figure out. I kept trying to use QXL as the makeshift RDP to use the VM, but if I had it enabled it would force low OpenGL Versions. I tried connecting a monitor directly to the GPU and directly installing differnet RDPs, but the VM wanted to have sepearte USBs dedicated to the machine. I figured there must be a better way. Eventually, I disabled QXL and started using windows built in RDP Remote Desktop which worked much much better. This also allowed for higher version of OpenGL to finally be used since QXL and Spice were no longer needed. The image above is LDplayer loading above 50%, meaning the OpenGL requirement had been fufilled.

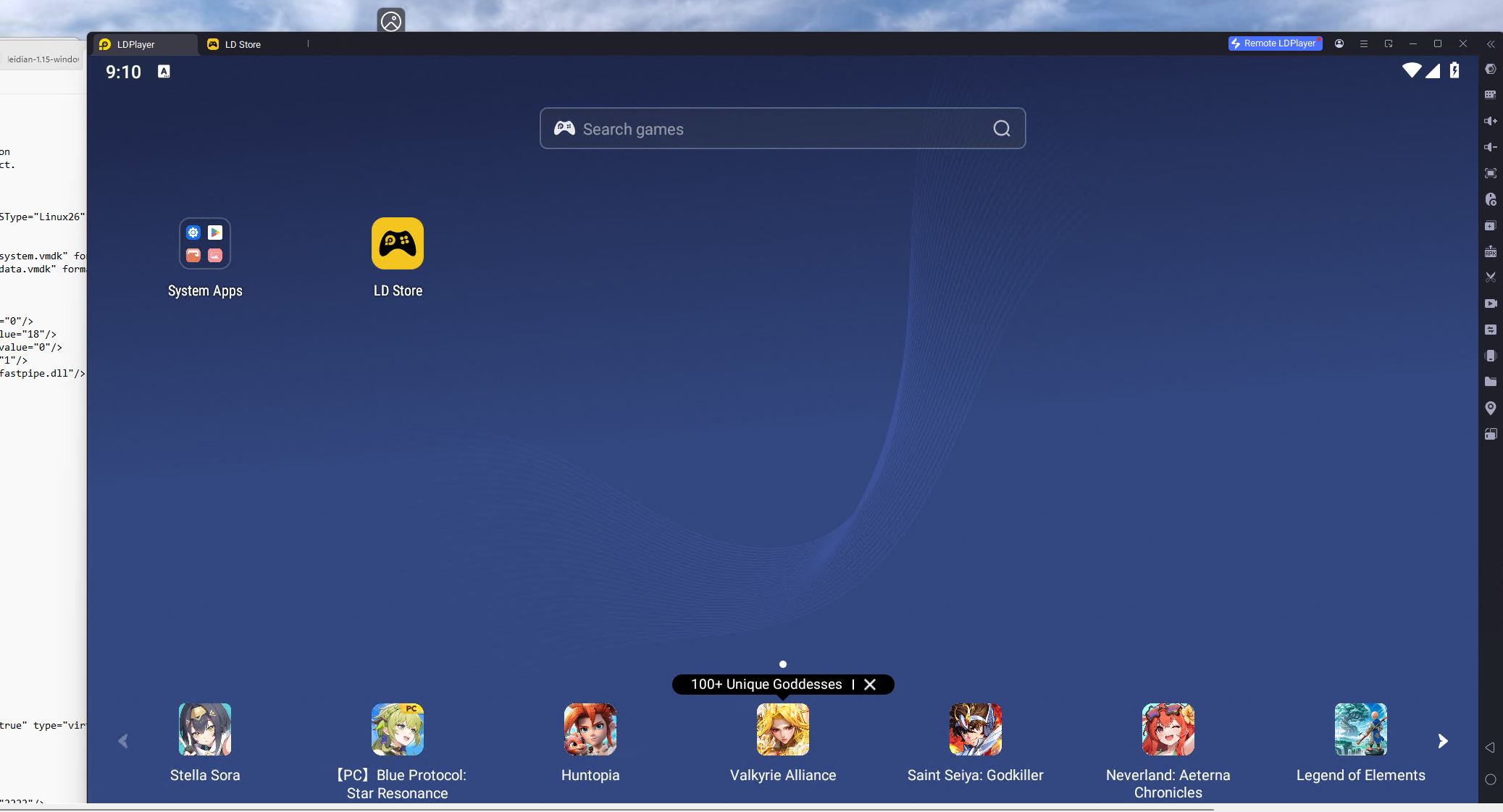

Finally we had gotten into LDPlayer and it was working! But it was incredibly slow. After messing around with the settings I noticed the the CPU Count was locked at 1 or 2 cores, which was wrong becaause our 5800x3d has 8 cores to use

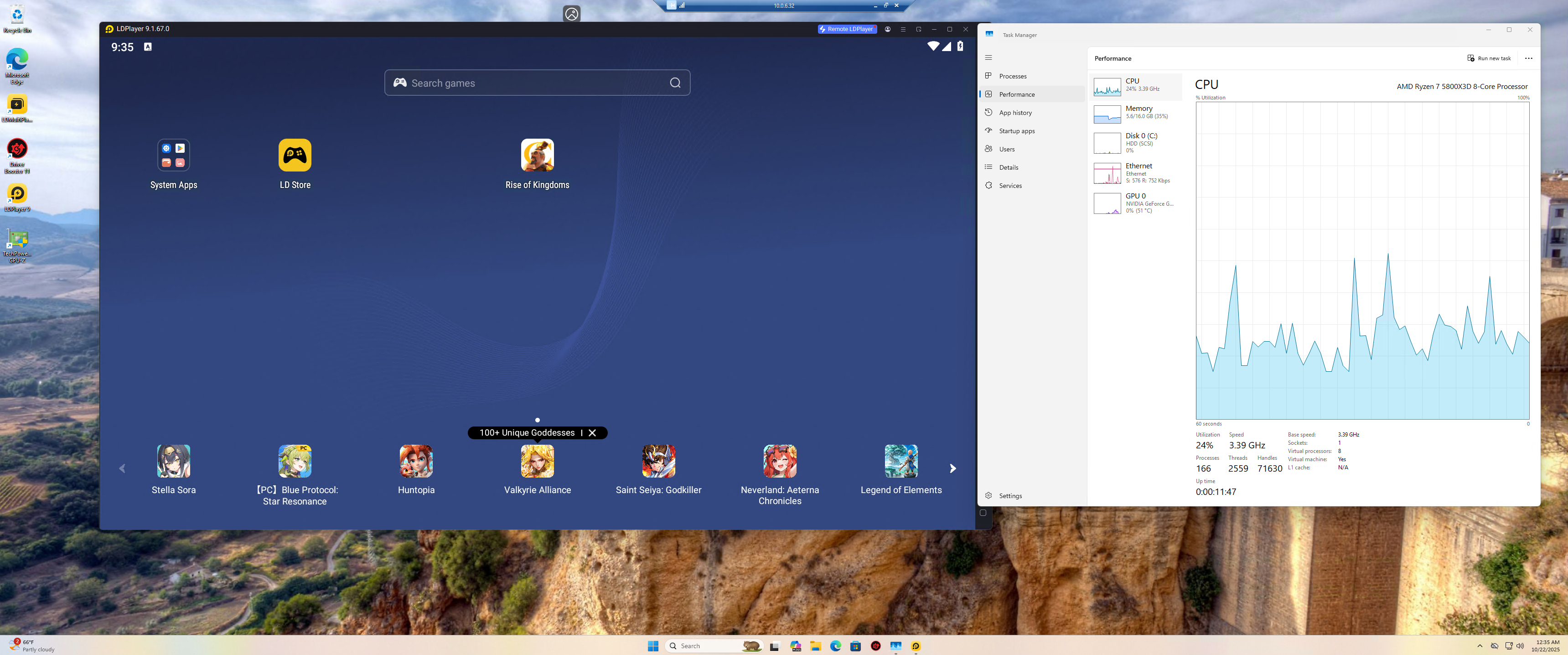

After some fiddling with the XML file, I was able to unlock all 8 cores for the VM. This significantly improved performance and responsiveness within LDPlayer, actually making it useful now if needed. Hyper-V was also an issue, as LDplayer reccomends it off. But it actually ran fine even with it on. After multiple tests it may have even performed better with it on but always gave us a popup and a warning. So instead of deleting it we just disabled it and hid it from windows. When we just disabled it, windows would re-enable it everytime. So we hid it too. And boom, no more hyper-v errors, and our vm was running clean!

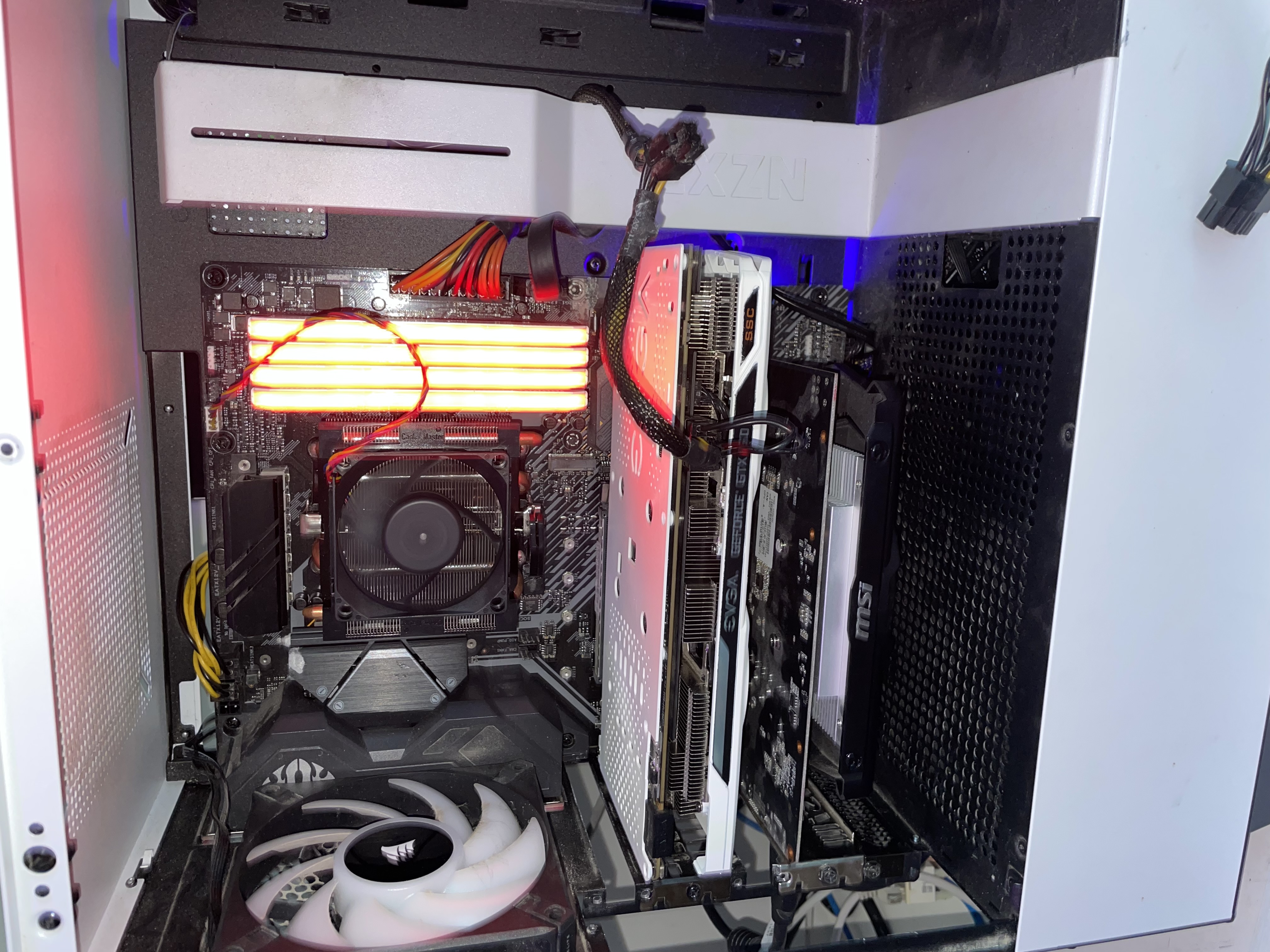

This was a good project for me, because I enjoy creating cloud like enviroments for niche tasks. I hate having my main PC cluttered with random things always running when instead I can have old PC parts laying around take that job instead on a server. This part of the overall project was a big success, for awhile I did not believe we could get OpenGL to work above 1.0. I found another older gpu, a 760, that I gave to the server to serve as its head if needed. I really only ever use it headless, but somtimes I break things and can't get in with ssh etc so the 760 being there is nice just in case. It also allowed to reallocate the 960 to be used for actually demanding tasks like running VMs with Emulators. The final step will be to polish the enivroment and start managing the LDplayer bots from the cloud. I would love to have an interface on the homepage where I can enable and disable the LDplayer bots and get feedback from them (screenshots). If completed, I will have a full cloud enviroment for my bots.
